Shutter camera as rear view camera with automatic protective cover

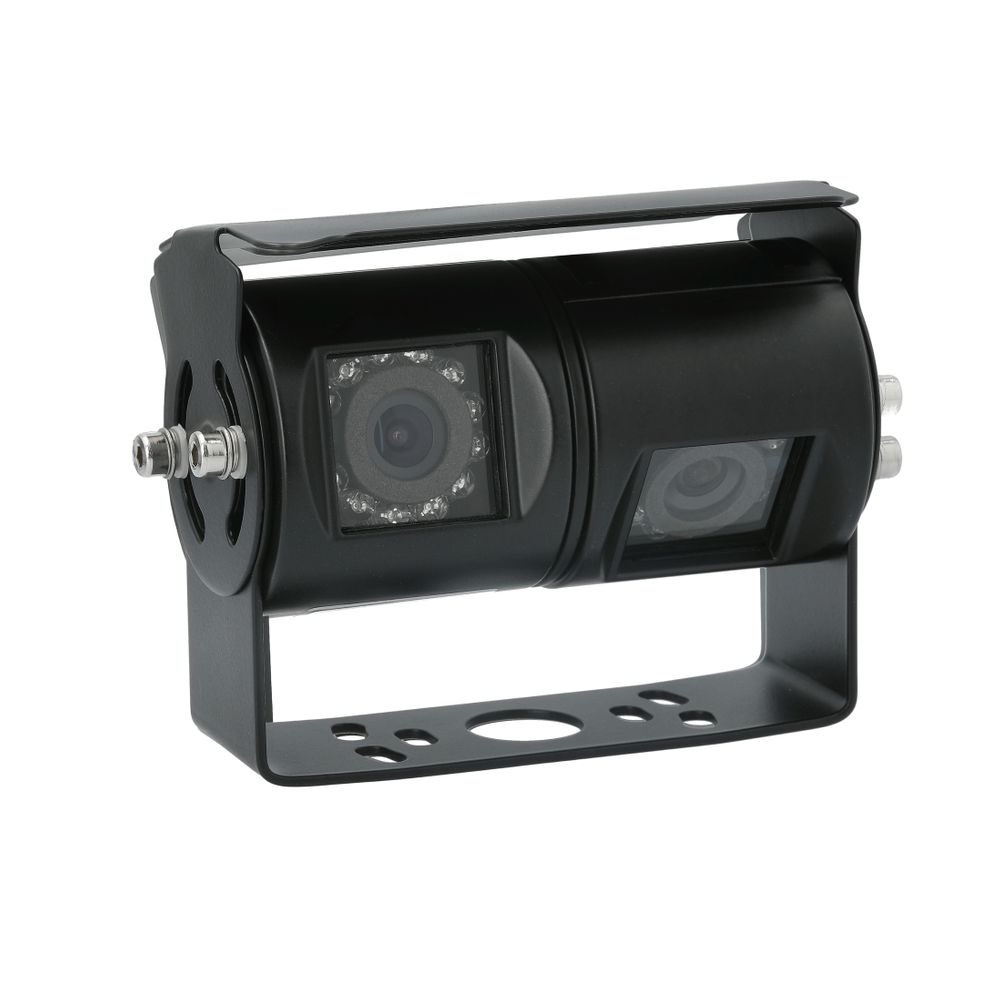

Dual lens shutter camera 90/120 HD-720P

Our extremely robust dual-lens shutter camera

Extremely robust camera: The extremely shock-resistant transporter rear view camera is specially designed for rough use and is therefore ideal for motorhomes, caravans, and small vans.

Everything in view: For optimal alignment, the waterproof camera is equipped with a swivel housing, a pre-mirrored 120° lens, and 20 powerful night vision IR diodes.

Details: With HD 720P, the color camera designed for 12 V on-board voltage offers up to 30% higher resolution than other rear view cameras. 0 lux light sensitivity + adapter cable.

Easy parking: Ideal for maneuvering and parking your vehicle at campsites or on rough terrain—the rearview camera set enables you to park your vehicle safely.

Shutter camera specifications & further details

• 120° viewing angle with a CCD chip for a good overview
• Night vision function with 20 powerful IR diodes
• Heavy-duty design with a robust housing
• PAL resolution: 1280 x 720 pixels (HD720P)
• Waterproof camera with IP 67 protection rating
• Suitable for continuous operation / Rearview mirror replacement
• Simplified installation thanks to the combined laminated glass cable system
• Suitable for all motorhomes, caravans, and small vans
• Automotive E-approval

Technical data:

• Dimensions W x H x D: approx. 80 x 73 x 65 mm
• Light sensitivity 0 lux & backlight compensation
• Direct mirrored display
• 12V operating voltage / max. 300mA consumption
• Includes cable gland and mounting hardware
• PAL resolution: 1280 x 720 pixels (HD720P)
• Storage temperature: -30°C to +60°C
• Operating temperature: -20°C to +70°C

Scope of delivery

• Camera with cable feed-through
• Assembly material
• Adapter cable to AV video RCA

Item designation

Item number	510029256
Article name	Doppellinsen Rückfahrkamera 90 Grad +120 Grad – HD-720P
HAN	KA129
GTIN / EAN	4055168121124
