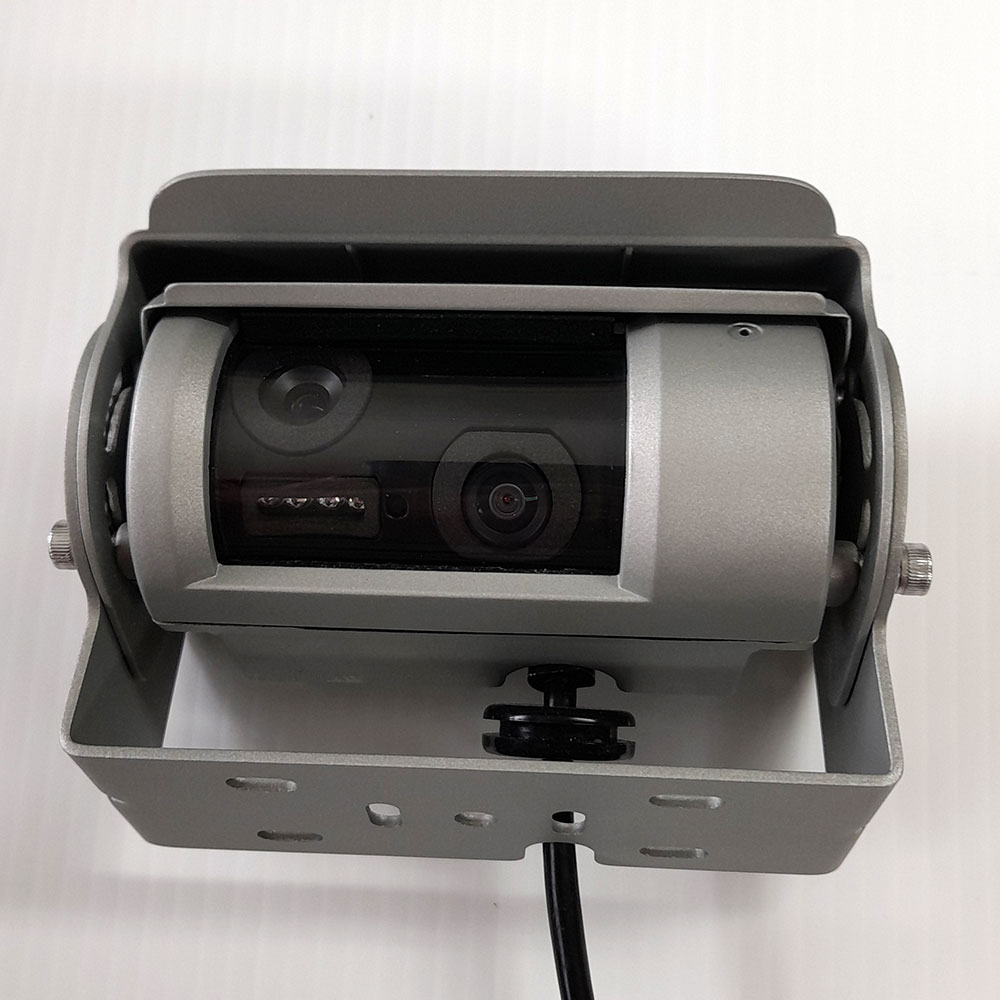

Shutter camera Dual-lens camera as a rearview camera with automatic shutter flap

Dual lens camera in white or silver

Shutter camera Dual lens camera as rear view camera with automatic shutter in white or silver

In recent years, rearview cameras have become an indispensable safety feature in motor vehicles. With larger motorhomes, caravans, or other vehicles, it is often difficult to see the area behind the vehicle. MobilWarn has developed a groundbreaking solution to this problem: the motorized shutter camera with dual lens and automatic shutter.

A special feature of the shutter camera is the automatic shutter flap. This protects the lenses from dirt, dust, and other external influences when the camera is not in use. As soon as reverse gear is engaged, the shutter flap opens automatically and the camera is ready for use. This ensures a clear and distortion-free view of the rear of the vehicle.

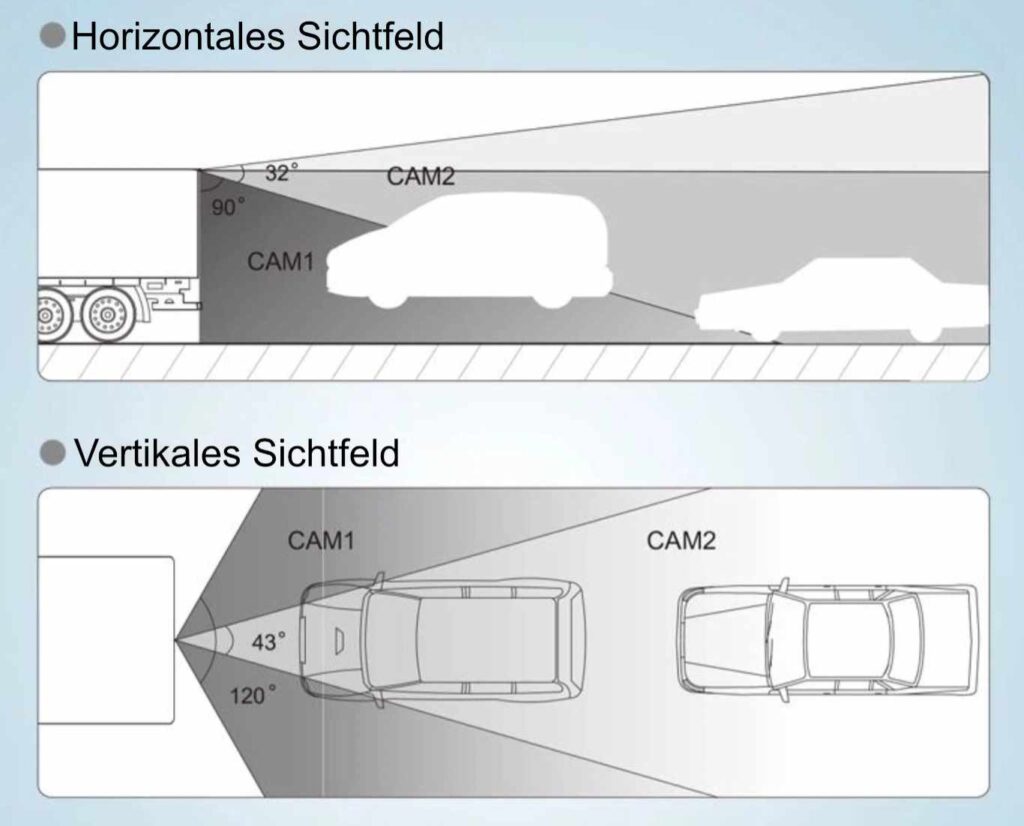

MobilWarn offers outstanding quality and innovative features in its portfolio. Two lenses enable a wide viewing angle, allowing the entire rear area of the vehicle to be seen. This makes parking, leaving parking spaces, and maneuvering the vehicle much easier, as the driver can keep an eye on all obstacles and potential hazards.

Our shutter camera is available in white or silver.

Technical data

Protection class	IP68
TV system	NTSC / PAL
volt	DC12V ± 1V
Operating temperature	-20~+75(RH95% Max.)
AGC	Auto
Image Sensor	SONY CCD
Lens angle (diagonal)	170 degrees
Power consumption	<1W
Electronic shutter	1/60-1/10,000 seconds
